Generate BirdFlow routes between known locations

route_between() generates synthetic migration routes conditioned on observed locations at specific times, using a Hidden Markov Model forward-filtering-backward-sampling algorithm. Use route_between() when you have information about where a bird or population is at two or more points in time and want to produce routes that pass through those locations.

Usage

route_between(
  bf,
  n,
  x_coord = NULL,
  y_coord = NULL,
  date = NULL,
  potentials = NULL,
  ...
)

Arguments

bf

A BirdFlow object.

n

Number of routes to sample.

x_coord, y_coord

Parallel numeric vectors of observed x and y coordinates (in the model's CRS). Must be provided together with date. Converted internally to indicator (one-hot) potentials. Cannot be used together with potentials.

date

When using x_coord/y_coord: a parallel vector of dates corresponding to each observation. When using potentials: a vector of dates corresponding to the columns of potentials (alternative to column names). Accepts any format recognized by lookup_timestep(): date strings ("2023-03-29"), Date objects, numeric timestep indices, or "t1"-style strings.

potentials

An n_active(bf) x n_obs matrix of soft observation potentials. Each column is a non-negative vector representing the observation likelihood at a given timestep. Timestep association is via column names or the date argument (exactly one required). Cannot be used together with x_coord/y_coord.

...

Arguments passed on to lookup_timestep_sequence

season

a season name, season alias, or "all". See lookup_season_timesteps() for options.

start

The starting point in time specified as a timestep, character date, or date object.

end

The ending point in time as a date or timestep.

direction

Either "forward" or "backward" defaults to "forward" if not processing dates. If using date input direction is optional and is only used to verify the direction implicit in the dates.

season_buffer

Only used with season input. season_buffer is passed to lookup_season_timesteps() and defaults to 1; it is the number of timesteps to extend the season by at each end.

n_steps

Alternative to end The end will be n_steps away from start in direction; and the resulting sequence will have n_step transitions and n_steps + 1 timesteps.

Value

A BirdFlowRoutes object. Same format as route().

See also

route() generates routes that rely only on the location at the start of the route. predict_between() has the same inputs as route_between() but returns distributions at the intermediate times instead of sampled routes.

Examples

bf <- BirdFlowModels::amewoo
xy <- latlon_to_xy(lat = c(30.5, 45.5), lon = c(-91.5, -68.5), bf)
rts <- route_between(bf, n = 5,
                     x_coord = xy$x, y_coord = xy$y,
                     date = c("2023-02-15", "2023-05-01"))

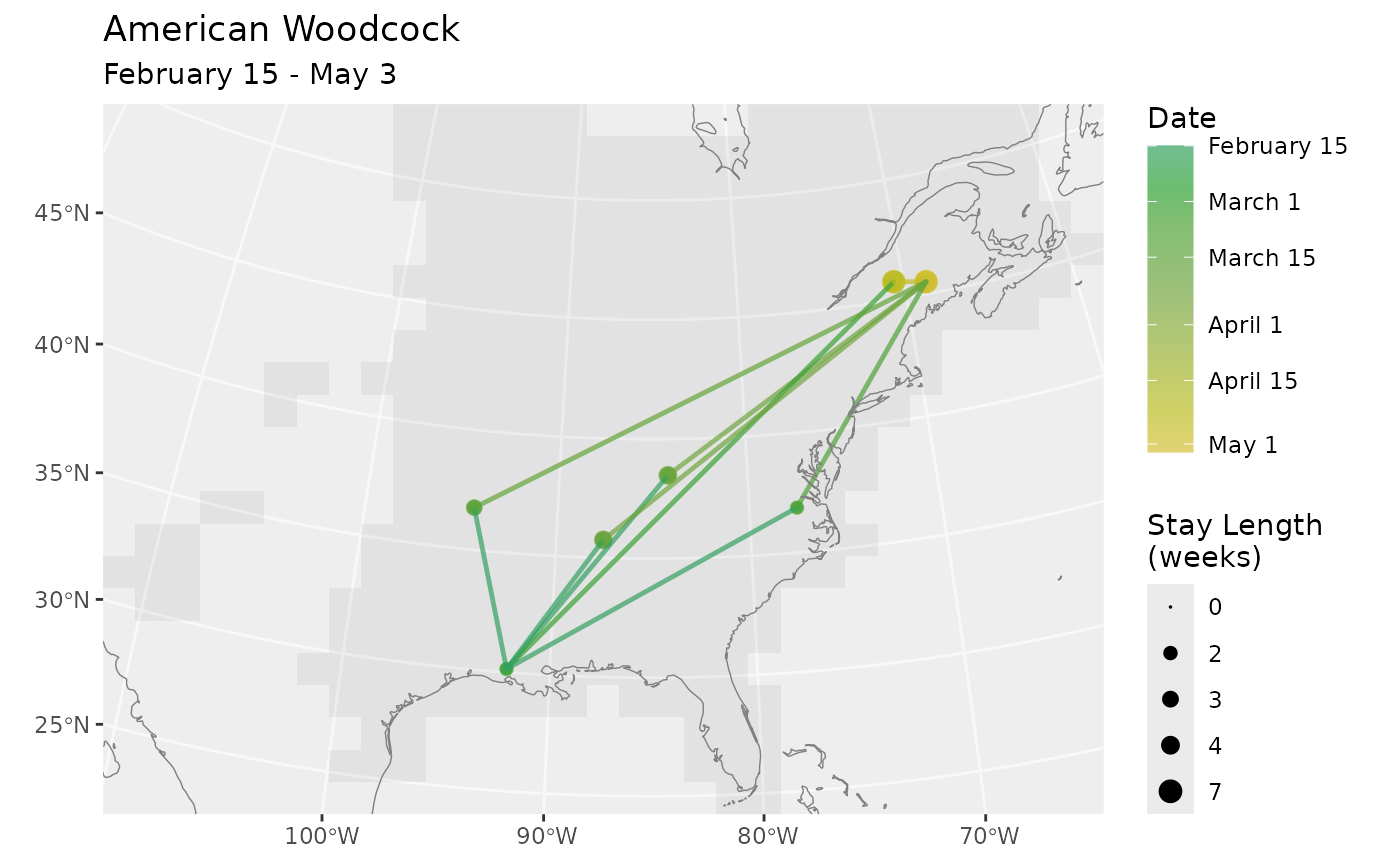

plot_routes(rts)
